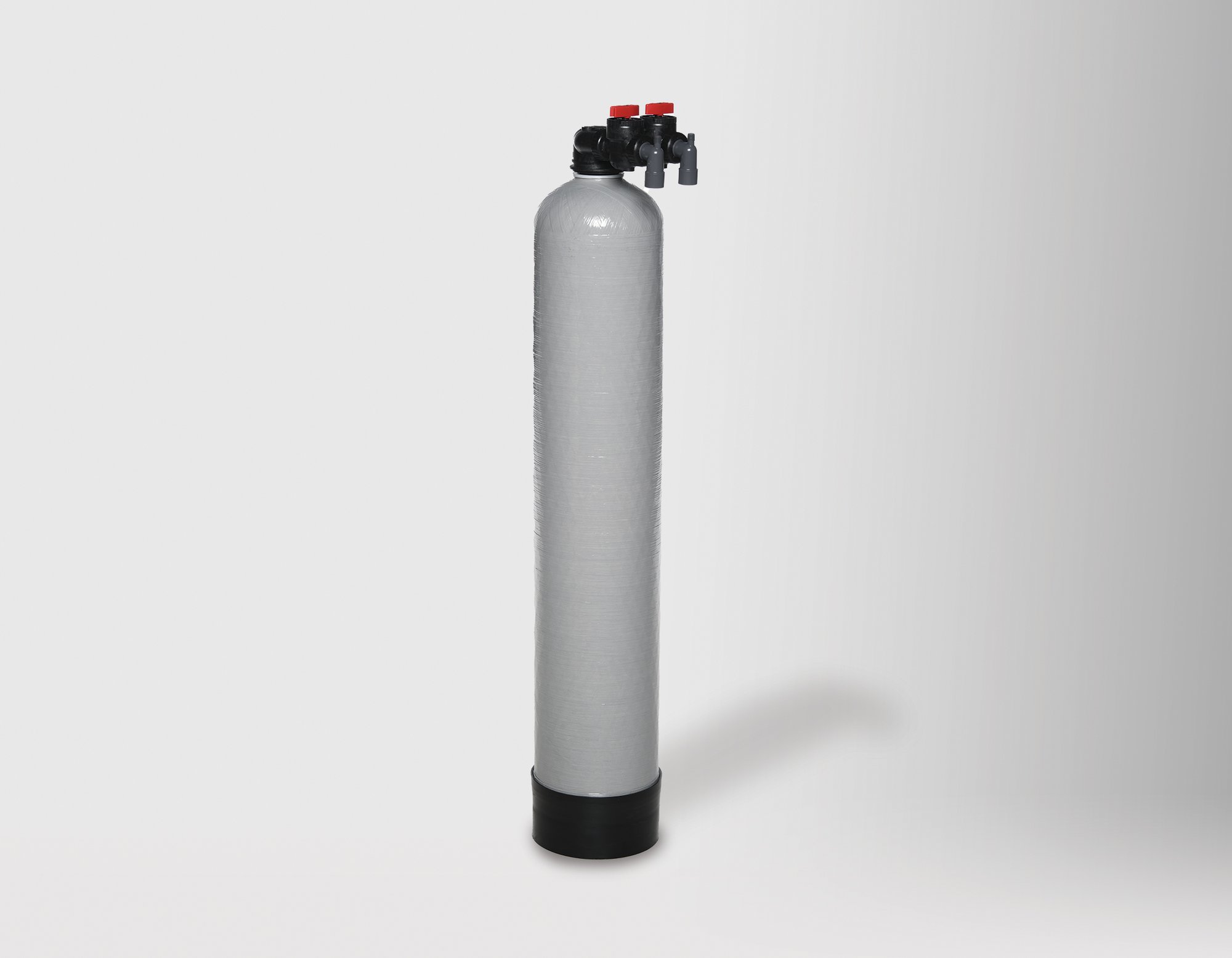

Greenscale Removal

The “green” alternative to ion exchange softening.

Greenscale uses advanced Nucleation Assisted Crystallization (NAC) technology to transform hard water minerals into harmless crystals that won't form scale. With no chemicals, electricity, salt, backwash, or maintenance required, this NSF 61 certified system protects plumbing and appliances while preserving beneficial minerals that traditional softeners remove.

No chemicals to add.

No salt regeneration.

No control valve needed.

No backwash necessary.

No electricity needed.

No maintenance required.

No waste to worry about.

No Environmental Impact.

Why scale matters.

Scale is the chalky white buildup that forms when hard water minerals—primarily calcium and magnesium—precipitate out of water and adhere to surfaces. You see it as crusty deposits on faucets and showerheads, cloudy film on glassware, and white rings inside toilets. But the real damage happens where you can't see it: inside water heaters, dishwashers, washing machines, and throughout your plumbing system. As scale accumulates on heating elements, it acts as an insulator that forces appliances to work harder and consume more energy. A quarter-inch of scale buildup can reduce water heater efficiency by up to 25%. In pipes, scale gradually restricts water flow and reduces pressure. Left unchecked, scale shortens appliance lifespan, increases energy costs, reduces cleaning effectiveness, and eventually requires expensive repairs or replacements. Greenscale addresses this problem by preventing scale formation at the molecular level—allowing the minerals to remain in the water while eliminating their ability to bond together and create damaging deposits.

Zero Maintenance, Maximum Protection

What Greenscale doesn't require is just as impressive as what it does. No salt. No electricity. No backwash cycles. No control valves. No regeneration. No chemical additives. No drain connection. Install it inline, and it works continuously for 5-7 years with zero maintenance or operating costs. The system doesn't change water pH, doesn't alter Total Dissolved Solids (TDS), and preserves the naturally occurring calcium and magnesium that contribute to healthy, great-tasting water—minerals that traditional softeners remove and replace with sodium.

Available in configurations from 10 to 25 GPM, Greenscale handles moderate hardness levels (up to 25 gpg with proper sizing). The compact, single-tank design installs easily in tight spaces with nothing to program, adjust, or monitor. It's particularly ideal for vacation homes, rental properties, or any application where regular maintenance is impractical.

The Green Alternative to Water Softening

Greenscale represents a fundamentally different approach to hard water problems. Instead of removing beneficial minerals through ion exchange, this system transforms them into a form that can't cause scale buildup. As hard water flows through the specialized media bed, calcium bicarbonate undergoes nucleation—converting into stable aragonite crystals that remain suspended in the water. These microscopic crystals won't adhere to pipes, fixtures, or heating elements, even in hot water applications up to 380°F.

The secret is Nucleation Assisted Crystallization (NAC). The system's glass bead media provides millions of nucleation sites where calcium carbonate crystals form and grow to a stable size before detaching into the water flow. Once formed, these aragonite crystals have a neutral surface charge and stable molecular structure that prevents them from sticking to anything—they simply flow through your plumbing and out the drain. Over time, the system can even help reduce existing scale deposits as conditioned water gradually breaks down old buildup.

Applications

The Greenscale has proven itself in a variety of applications as an alternative to ion exchange softening or other treatment methods. The maintenance-free characteristics make it especially suited for Residential, Commercial and Foodservice applications where equipment maintenance is overlooked.

NOTE: Do not use where water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the unit. The effective average lifespan is 5-7 years depending on feed water conditions.

Home appliances: Faucets, water pipes, shower heads, toilets, beverage systems, kitchen machines, dish washers, ice cube makers.

Major appliances: Central heating and air conditioners, water heaters, air humidifiers coffee makers, solar heating systems and water coolers.

Boilers: Hot water boilers, tankless hot water heaters, central heat-ing boilers, commercial/industrial hot water boilers.

Cooling towers: Closed circuit cooling towers, open circuit cooling towers, concrete cooling towers and cross flow cooling towers.

Recommended Installation

For optimal performance, redundancy, and safety, we recommend:

Pre-filtration recommended if sediment is present in source water (5 micron or finer)
Hardness testing required to select appropriate system capacity (12 gpg or 25 gpg configuration)
Flow rate consideration - size system to match peak household demand
Temperature limits - suitable for cold water lines; can handle up to 380°F for specialized applications
Bypass valve optional for service access, though no routine maintenance is required
Horizontal or vertical installation - system works in any orientation

Design Notes:

For hardness greater than 25 gpg, consult Aqua Wholesale for alternative solutions
Not suitable for water that is microbiologically unsafe without adequate pre-disinfection
Best suited as alternative to softening where mineral preservation is desired
Particularly effective for tankless water heaters, dishwashers, coffee equipment, and other scale-sensitive appliances

Professional tip: Greenscale is the ideal solution for customers who want scale protection without salt, for vacation homes where maintenance is impractical, or for rental properties where you want to eliminate service calls. It's also perfect for environmentally conscious customers concerned about salt discharge.

Service Flow Rate	FIltersorb® SP3 Quantity	Tank Size
12 gpm	4 liters	9”x 48”
15 gpm	5 liters	10" x 54"
18 gpm	6 liters	12" x 52"
21 gpm	7 liters	13" x 54"

System Features:

Template Assisted Crystallization (TAC) technology using specialized ceramic media
Nucleation Assisted Crystallization (NAC) process converts hardness minerals to aragonite crystals
Available in 10, 12, 15, 20, and 25 GPM configurations
Two hardness capacity options: up to 12 gpg or up to 25 gpg

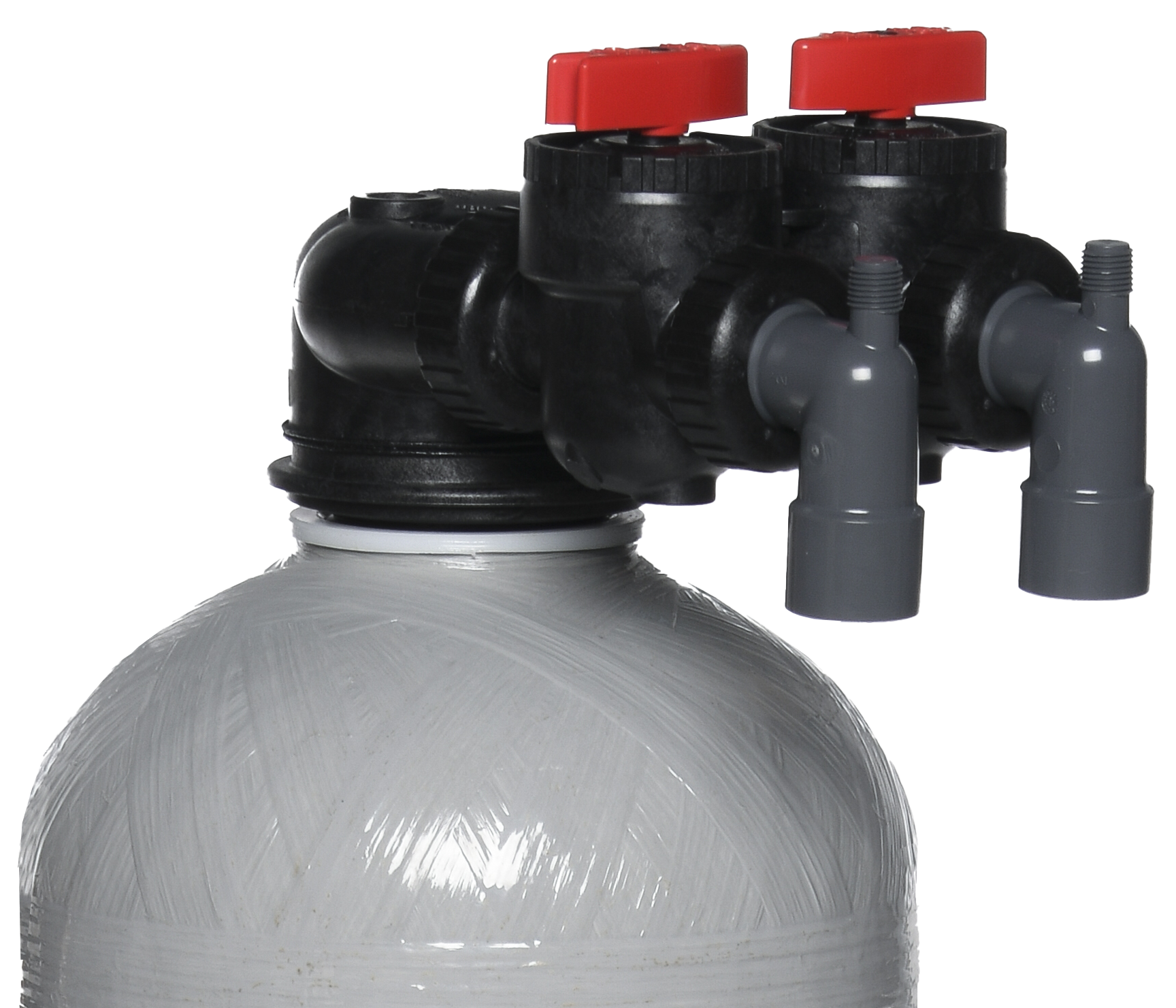

Single tank design with standard 1" FNPT inlet/outlet connections
Multiple plumbing configurations available: basic straight in/out, PVC in/out, or Clack side-by-side with bypass
NSF 61 certified for drinking water safety
5-7 year effective media lifespan (depending on water conditions)
Compact footprint: tanks from 7"x44" to 13"x54"
No control valve, electricity, or drain connection required
Passive operation with no moving parts

System Benefits:

Prevents scale formation in pipes, fixtures, appliances, and water heaters
Gradually helps reduce existing scale deposits over time
Cleaner, safer, better-tasting water throughout the home
Preserves beneficial calcium and magnesium minerals for health
No sodium addition (unlike traditional salt-based softeners)
No change in water pH or Total Dissolved Solids (TDS)
Zero ongoing maintenance or operating costs
No chemicals, salt, backwash, or regeneration required
Environmentally responsible—no salt discharge to waste water
Effective lead removal from water
NAC process creates micro-bubbles that help prevent bacterial growth and biofouling
Ideal for applications where maintenance is impractical or overlooked
