Clack® WS1 Water Softener

The scientist behind soft water

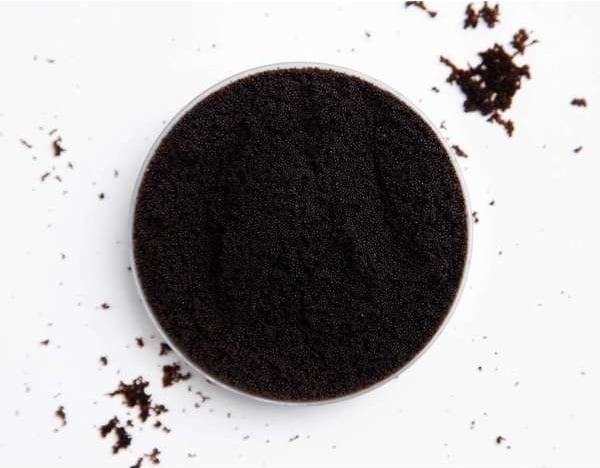

Ion exchange softening works through a simple but elegant chemical process. Hard water contains dissolved minerals—primarily calcium and magnesium—that cause scale buildup, spotting, and reduced soap efficiency. ResinTech's premium softening resin is composed of millions of tiny polymer beads, each containing negatively charged exchange sites loaded with sodium ions. As hard water flows through the resin bed, calcium and magnesium are captured and held in place while sodium ions are released. The result is soft water that protects plumbing, extends appliance life, and delivers the spotless dishes and soft laundry your customers expect.

When the resin becomes saturated with hardness minerals, the regeneration cycle reverses the process. A concentrated salt brine solution floods the resin bed, displacing the captured hardness minerals and flushing them to drain. The resin is then rinsed and returned to service, ready to soften thousands more gallons—a proven technology that continues to deliver reliable results your reputation depends on.

The Control System Professionals Trust

The Clack WS1 represents the perfect balance of sophisticated control technology and straightforward mechanical design. Built around a solid-state microprocessor with an easy-access front panel, this system puts complete operational control at your fingertips while maintaining the robust, proven hydraulics that water treatment professionals have relied on for decades.

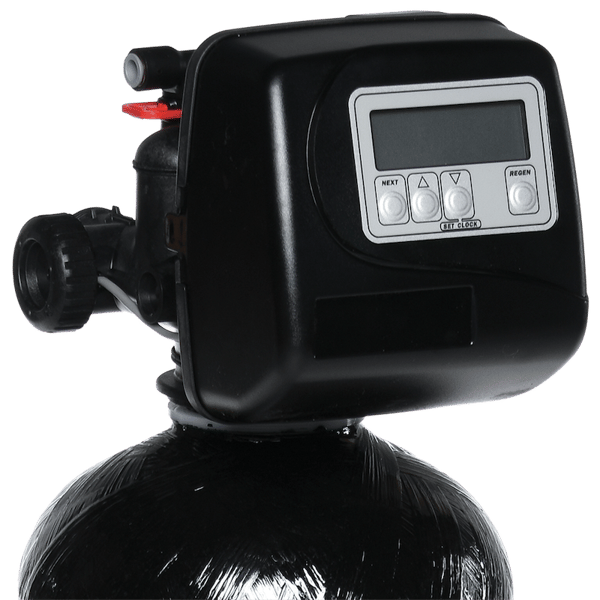

The intuitive display shows everything you need at a glance: time of day, days until next regeneration, volume remaining, current flow rate, and total volume used. Four programmable regeneration methods—meter immediate, meter delayed, time clock delayed, or pressure differential—give you the flexibility to match the system precisely to your customer's usage patterns and water conditions. The optional double backwash feature delivers optimum regeneration efficiency, ensuring consistently soft water while maximizing salt efficiency and resin life.

Installation and Service Made Simple

The reliable DC motor, seal spacer stack, and hydraulically balanced piston design mean fewer service calls and longer system life. The 12-volt output AC adaptor provides safe, straightforward installation, while the coin cell lithium battery backup with 8-hour carryover ensures your programming stays intact even during power outages. Choose between downflow or upflow brining regeneration to match your specific application requirements, and configure treated/soft water post-fill to ensure customers never experience hard water during the regeneration cycle.

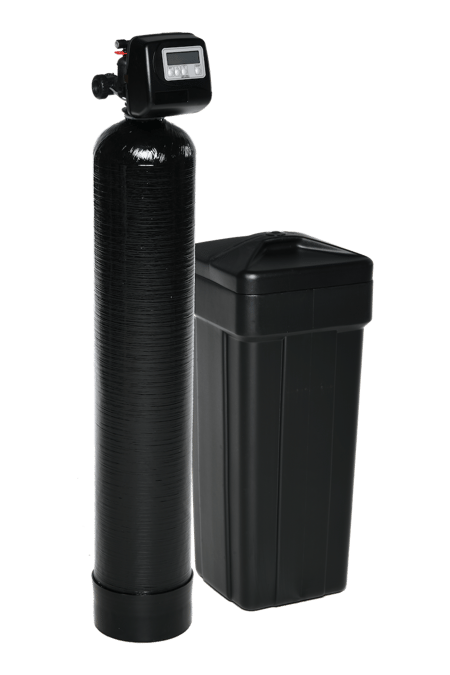

Available in both time clock and metered configurations, the WS1 accommodates tanks up to 21" diameter in eight different system sizes—from compact 24k grain units perfect for condos and smaller homes to robust 64k grain systems for larger households or high-demand applications. Optional bypass valves are available in fiber-reinforced polymer or stainless steel for added convenience and serviceability.

Our standard tank color is black with designer tank jackets available to protect against UV exposure in outdoor installations. If you prefer different colors, they can be specially ordered. Multiple brine tank configurations ensure you can fit the complete system into virtually any installation space while maintaining the professional appearance your customers expect.
